Ampere: 3 x 16 A Temperature Range Control: -20 ºC / +50 ºC Built-in Timer for Manual Snow Melting Afterrun: 0 – 18 hours Display: Graphic, backlit Construction: IP20 / NEMA 1 rated enclosure, for indoor installation 2 Zone Application: Via 2 x 16 A potential-free output relays Dimensions (H x W x D): 90 mm x 156 mm x 45 mm Wattage: 220-240 V AC, 50 Hz

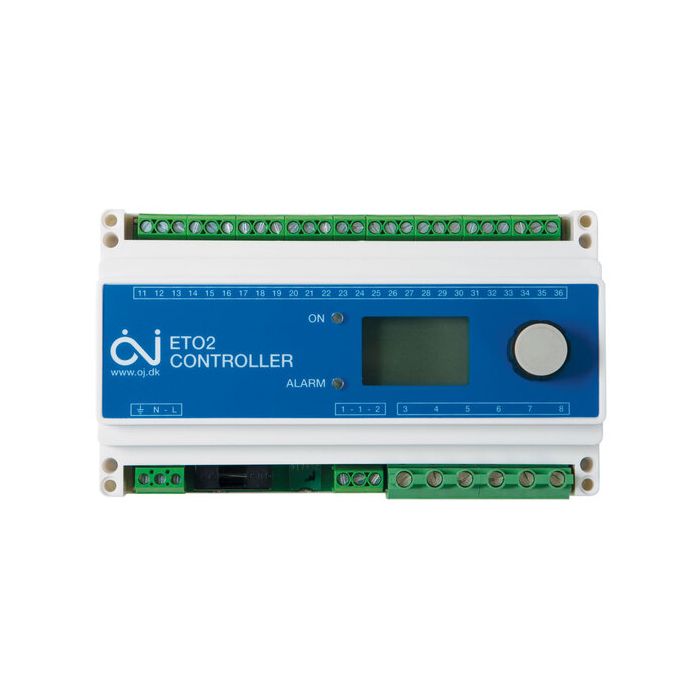

The ETO2 provides efficient ice and snow melt control for large applications, ensuring reliable operation even in challenging weather conditions.
Key Features:
Electronic On/Off Control: Supports up to 11 KW for effective management of heating systems.
Economical Operation: Minimizes energy consumption, reducing overall operating costs.
Two-Zone Control: Allows for individual control of two separate zones simultaneously.
User-Friendly Interface: Equipped with a display and a "knob wheel" for straightforward programming.
Adjustable Moisture Sensitivity: Customizes the sensitivity to moisture levels based on specific needs.
Intelligent Detection
The ETO2 system detects both temperature and moisture, ensuring that the ice and snow melting system activates only when necessary, preventing unnecessary energy use.
Easy Configuration
An encoder button and a backlit graphic display facilitate quick configuration and provide clear indicators of temperature, system status, and more.
Versatile Application
The ETO2 is designed to control electric heating cables in either one or two zones, featuring advanced two-stage output control for optimized and economical operation.
