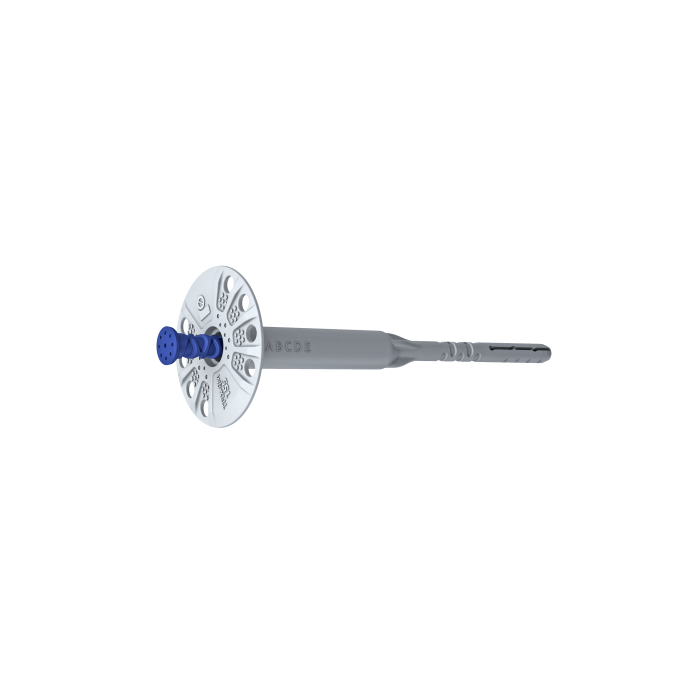

R-TFIX-8M / Hammer-in facade fixing

Add to Wish List
In stock
Only %1 left
SKU:
ALLV_R-TFIX-8M / Hammer-in facade fixing

Type:  Hammer-in

Suitable For:  ETICS, polystyrene (EPS), mineral wool (MW), polyurethane (PU) boards

Point Thermal Transmittance W K:  0,001

Approvals:  ETA 17/0592; UKTA-22/6290

€0.67
Product isn't available for delivery in your country.

R-TFIX-8M / Hammer-In Facade Fixing

The Rawlplug R-TFIX-8M hammer-in facade fixing features a steel nail and is recommended for securely fastening insulation materials in External Thermal Insulation Composite Systems (ETICS).

Features and benefits:

  • Quick and easy installation in all approved substrates across categories A, B, C, D, and E

  • Unique sleeve compression zone supports precise installation

  • Reduced point thermal transmittance of 0.001 W/K, thanks to the high steel nail overmold, helping reduce facade heat loss

  • High load capacity with a shortened 25 mm anchoring zone

  • Excellent plate stiffness of 1.0 kN/mm ensures a smooth facade surface and a stable insulation system

  • Increased head diameter enables centered hammering for improved installation comfort

  • Preassembled fixing components help save installation time

Applications:

  • External Thermal Insulation Composite Systems (ETICS)

  • Polystyrene (EPS) boards

  • Mineral wool (MW) boards

  • Polyurethane (PU) boards

  • Cork boards

  • Lightweight wood-wool building boards

Installation guide:

  • Drill a hole of the required diameter and depth

  • Use a minimum drilling depth of 35 mm in materials from categories A, B, C, and D, and 75 mm in aerated concrete blocks

  • Clean the drilled hole three times

  • Ensure the underside of the plate is flush with the ETICS surface

  • Maintain a minimum embedment depth of 25 mm in materials from categories A, B, C, and D, and 65 mm in aerated concrete blocks

  • Hammer the nail into the plastic sleeve until the fixing is secure and flush with the insulation material

  • For soft insulation panels, combine the fixing with suitable insulation retaining plates

Video:

https://youtu.be/1CJdqPJLG6Y

Type:
Hammer-in
Suitable For:
ETICS, polystyrene (EPS), mineral wool (MW), polyurethane (PU) boards
Point Thermal Transmittance W K:
0,001
Approvals:
ETA 17/0592; UKTA-22/6290
Min Spacing Mm:
100
Min Edge Distance Mm:
100
Fixing Diameter Mm:
8
Hole Diameter In Substrate Mm:
8
Plate Diameter Mm:
60
Plate Stiffness Kn Mm:
1
Plate Resistance Kn:
1,53
