R-TFIX-8SX / Universal facade fixing with plain screw

R-TFIX-8SX / Universal Facade Fixing with Plain Screw

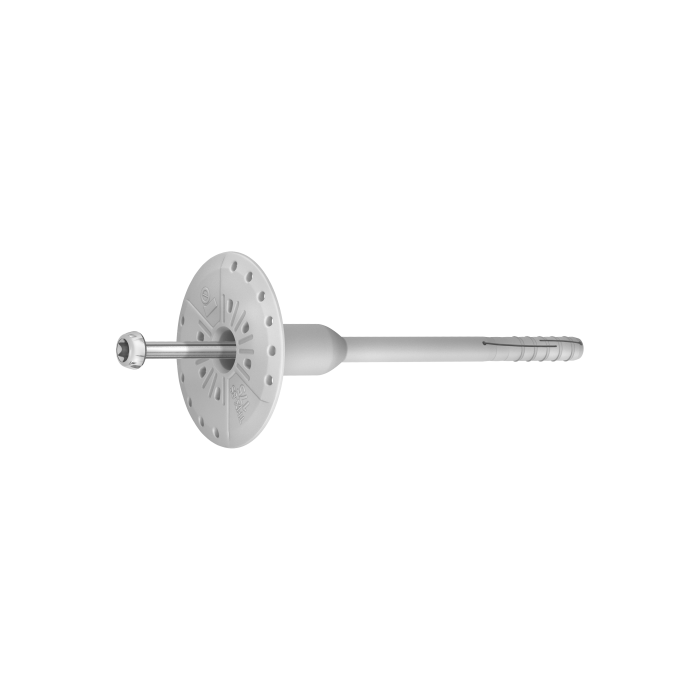

The Rawlplug R-TFIX-8SX universal facade fixing is an efficient screw-in fixing designed for countersunk installation, with the option of surface mounting in External Thermal Insulation Composite Systems (ETICS).

Features and benefits:

• Quick and easy installation in substrates from categories A, B, C, D, and E
• Installation with the post-installed R-TFIX-CAP insulation cap reduces heat transmission and creates a smooth, homogeneous insulation surface
• Plate stiffness of 0.6 kN/mm ensures a smooth facade surface and a stable insulation system
• Unique design provides high load-bearing capacity, reducing the number of fixings required per square meter of insulation
• Shortest embedment depth while maintaining maximum strength parameters
• Countersunk installation is possible using the R-TFIX-TOOL-CS, or the additional R-KWX-063 plate with the post-installed R-TFIX-CAP63 insulation cap and R-TFIX-TOOL-BLACK system bit
• Flush surface installation is possible using the R-TFIX-TOOL-BLACK system bit and the post-installed R-TFIX-CAP15 insulation cap
• Preassembled screw saves installation time and labor
• Unique sleeve compression zone supports precise installation

Base materials:

• Concrete
• Solid brick
• Solid sand-lime brick
• Vertically perforated clay block
• Reinforced lightweight aggregate concrete components
• Aerated concrete block

Installation guide:

• Drill a hole of the required diameter and depth
• Use a minimum drilling depth of 35 mm in materials from categories A, B, C, and D, and 75 mm in aerated concrete blocks
• Clean the drilled hole three times
• Insert the driver bit into the recess in the molded head of the R-TFIX-8SX screw
• Insert the dowel into the drilled hole
• When using the R-KWX-063 plate, ensure the teeth are embedded in the insulation material after hammering
• Maintain a minimum embedment depth of 25 mm in materials from categories A, B, C, and D, and 65 mm in aerated concrete blocks
• Apply steady axial pressure while keeping the setting-tool disc perpendicular to the fixing axis
• Drive the screw steadily at high speed until the fixing is secure and the disc touches the insulation surface
